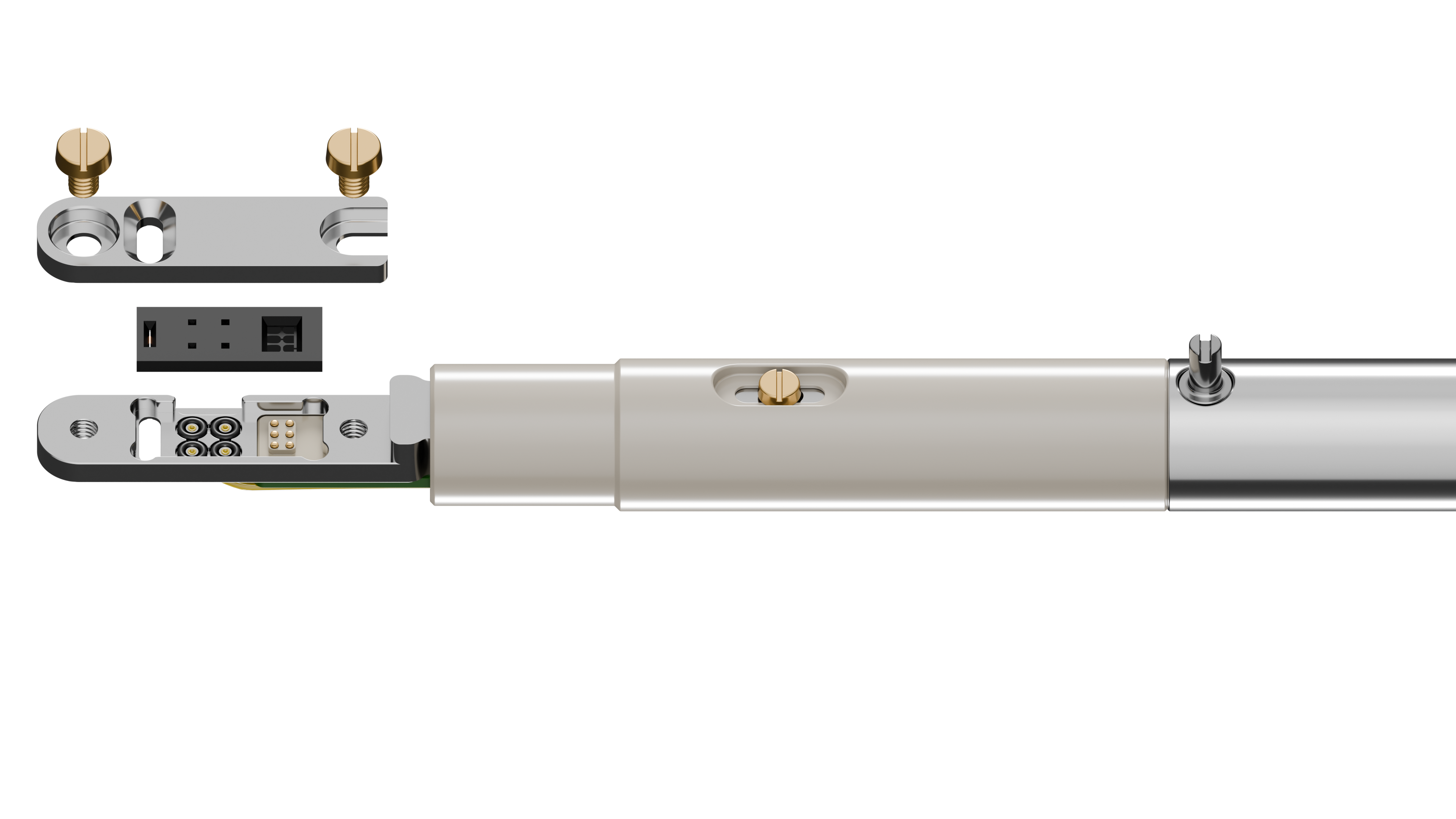

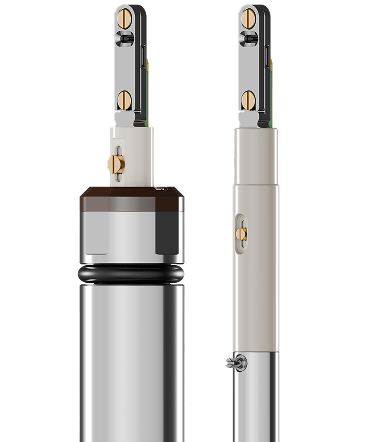

Electro-chemical liquid-cell TEM holder enabling atomic resolution
Volta is the first ever commercial solution for atomic resolution imaging inside an electro-chemical flow cell.
Developed by Insight Chips in partnership with DTU.
Book a call with us to discuss how the solution may help you.
Atomic resolution of electrodeposited zinc grown from a 0.1 M ZnSO4 solution, captured on a Titan equipped with a Gatan OneView detector.
It’s only going to get better!This image was with our very first prototype chip with a whopping liquid thickness of 270 nm! We just got new chips out from the clean room with liquid thickness down to 40 nm.
The corresponding CV for the ZnSO4 experiment, with a scan rate of 100 mV/s.
This curve is also produced with our first prototype which only had 2 electrodes. Our new version has 3 electrodes.
